PTT’s reverse starter bellhousing kit uses a lightweight, button-style flywheel and a starter ring gear mounted on top of the clutch. There are a number of advantages to using a reverse mount bellhousing:
- The starter is mounted away from the heat of the headers
- The small diameter flywheel and clutch allow the drivetrain to be mounted lower in the chassis
- The smaller overall physical size of the bellhousing fits more easily into a stock car
- Relocating the starter lowers the vehicle’s polar moment of inertia, resulting in better handling and faster turn-in response

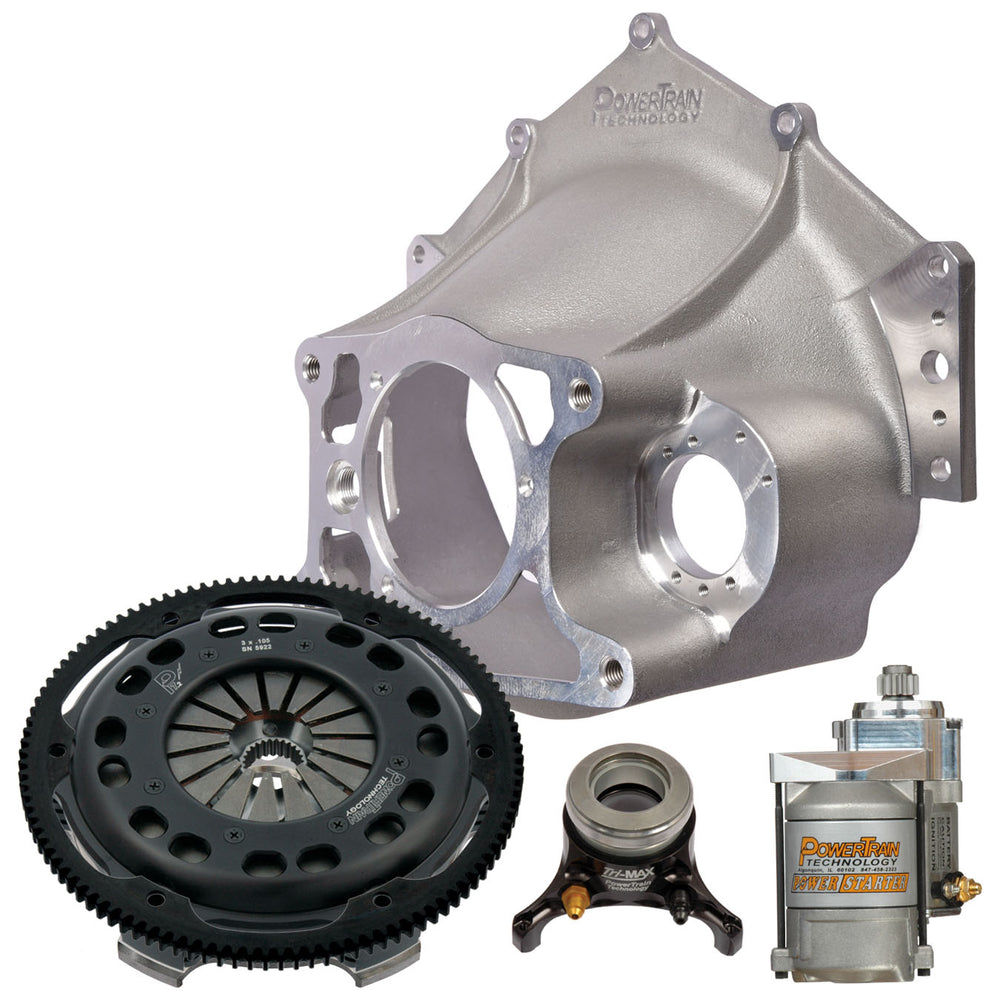

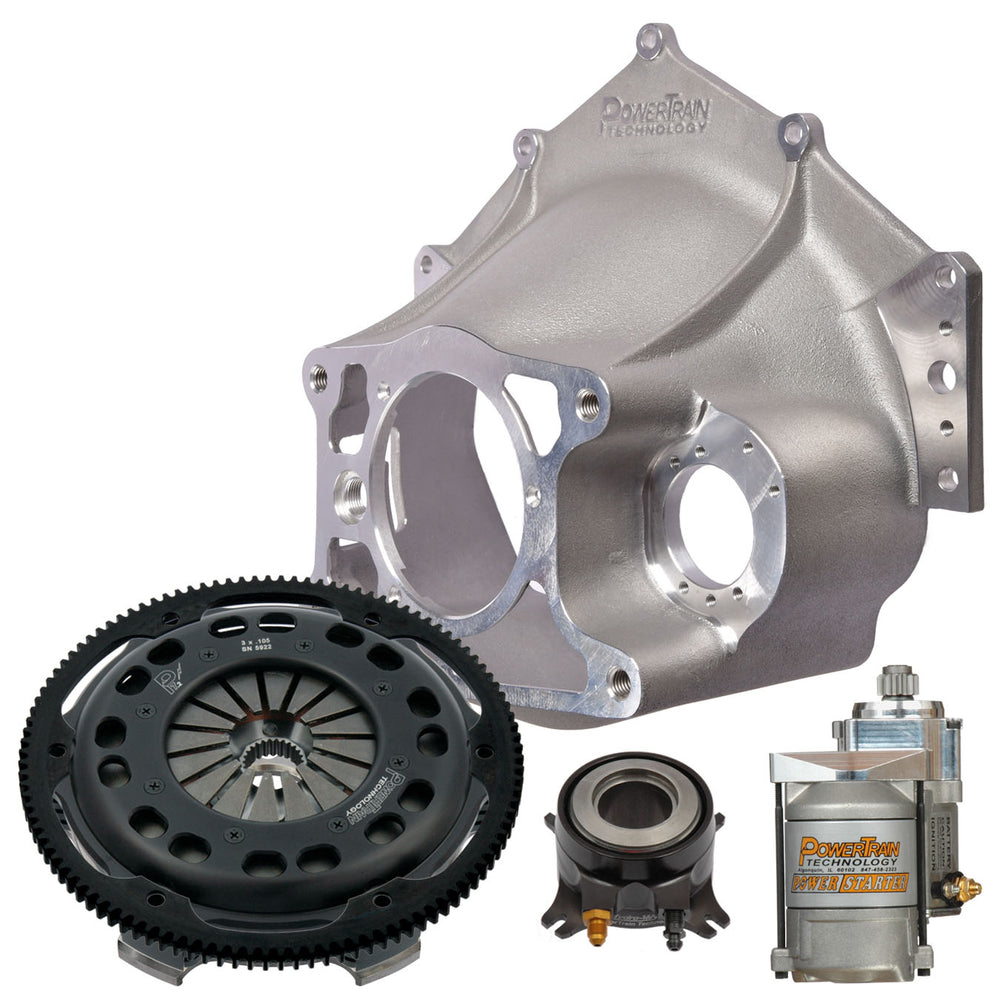

Kit includes: 7.25” Clutch, Light Weight Button Flywheel, Reverse Starter Mount Bellhousing (aluminum), Reverse Mount Starter, Hydraulic Release Bearing with External Bleeder Kit (Hydro-MAX or Tri-MAX), Reverse Mount Ring Gear, Clutch Bolts & Flywheel Bolts. Call us for super-lightweight options. NOTE: Does not include a Motor Plate.
Click here for 7.25" Bellhousing Kit Catalog.
-
BH3118
This kit includes:
- 7.25” 3 disc clutch with .105” thick sintered bronze metallic discs
- 1-1/8” x 10 tooth spline (coarse spline)
- Clutch torque capacity: 1020 lb.ft. peak torque capacity
- Designed for cars with 510 – 810 lb.ft. of engine torque
- Lightweight button flywheel to fit Chevy early model crank (1985 & earlier with 2 piece rear main seal)
- Bellhousing, Chevy SB V-8, for use with reverse mount starter
- Starter, reverse mount (reverse rotation)
- Hydro-MAX drop-in floating mount hydraulic release bearing, 2.28-3.03" OAL, with external bleeder line kit
- Reverse mount ring gear for 7.25” 3 disc clutch
- Clutch bolts
- ARP flywheel bolts
- 7.25” 3 disc clutch with .105” thick sintered bronze metallic discs
