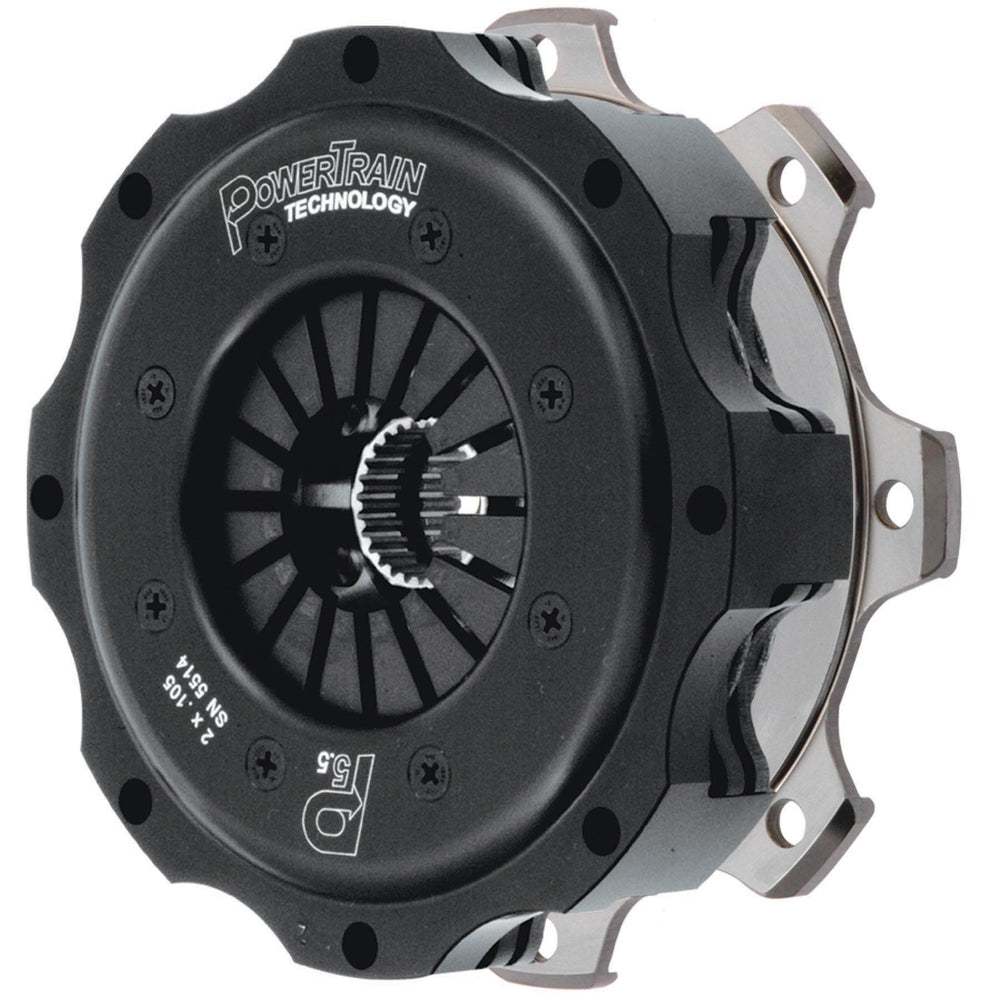

5.5” Racing Clutch & Flywheel

  • 5.5” Racing Clutch & Flywheel
  • 5.5” Racing Clutch & Flywheel
  • 5.5” Racing Clutch & Flywheel
  • 5.5” Racing Clutch & Flywheel
  • 5.5” Racing Clutch & Flywheel

5.5” Racing Clutch & Flywheel

  • Don’t see your configuration?

    Call us at 847.458.2323 or email: sales@PowerTrainTech.com

    Call us for super-lightweight options.

    PTT offers racing clutches with button style flywheels that feature innovative design, high reliability, and above all else the competitive edge you seek. Our 5.5” line of metallic clutches feature Ultra-Low Moment of Inertia (M.O.I.) They are up to 20% lower in M.O.I. than other manufacturers' equivalent clutches. PTT clutches have Race Winning Reliability built into them. This level of performance comes from over 35 years of experience building championship winning, quality products. The engineering excellence, vision, and dedication to using the finest quality materials and manufacturing methods speaks for itself every time you pick one up.

    Standard features included in every PTT 5.5" clutch are: Low profile cover design, flush mount fasteners, Power-V drive legs, micro-finished friction material, CNC manufacturing ensuring the highest level of quality, open design for cleaner operation & longer maintenance intervals. Also offered are: Different friction materials to suit specific racing needs, lightened chrome-moly floater plates & pressure plates, and aluminum pressure plates for the ultimate in low M.O.I.

    5.5” button style flywheels are available in a lightweight scalloped design and super-lightweight drilled for the lowest M.O.I. available.

    PTT’s 5.5” clutch has 58% of the M.O.I. of a 7.25” clutch.  5.5” clutches are available in 1, 2, 3 or 4 disc configurations.

    When will my order ship?

    Click here for 5.5" Racing Clutch Catalog.

  • KE2128

    This kit includes:

    CE216A1Z80

    • 5.5” 2 disc clutch with .105” thick sintered bronze metallic discs
    • 1-1/8” x 10 tooth spline (coarse spline)
    • Clutch torque capacity: 660 lb.ft. peak torque capacity
    • Designed for cars with 330 – 525 lb.ft. of engine torque
    • Weight = 5.45 pounds

    FE101

    • Lightweight 5.5” button flywheel
    • Fits Chevy early model crank (1985 & earlier with 2 piece rear main seal)
    • Weight = 2.20 pounds



      KE2828

      This kit includes:

      CE216A1Z80

      • 5.5” 2 disc clutch with .105” thick sintered bronze metallic discs
      • 1-1/8” x 10 tooth spline (coarse spline)
      • Clutch torque capacity: 660 lb.ft. peak torque capacity
      • Designed for cars with 330 – 525 lb.ft. of engine torque
      • Weight = 5.45 pounds

      FE103

      • Lightweight 5.5” button flywheel
      • Fits Chevy late model crank (1986-1997 with 1 piece rear main seal)
      • Weight = 2.16 pounds



        KE2928

        This kit includes:

        CE216A1Z80

        • 5.5” 2 disc clutch with .105” thick sintered bronze metallic discs
        • 1-1/8” x 10 tooth spline (coarse spline)
        • Clutch torque capacity: 660 lb.ft. peak torque capacity
        • Designed for cars with 330 – 525 lb.ft. of engine torque
        • Weight = 5.45 pounds

        FE1031

        • Lightweight 5.5” button flywheel
        • Fits Chevy late model Crate Motor crank (1986-1997 with 1 piece rear main seal)
        • Externally balanced
        • Weight = 2.75 pounds



          KE2028

          This kit includes:

          CE216A1Z80

          • 5.5” 2 disc clutch with .105” thick sintered bronze metallic discs
          • 1-1/8” x 10 tooth spline (coarse spline)
          • Clutch torque capacity: 660 lb.ft. peak torque capacity
          • Designed for cars with 330 – 525 lb.ft. of engine torque
          • Weight = 5.45 pounds

          FE105

          • Lightweight 5.5” button flywheel
          • Fits Chevy LS V-8
          • Weight = 2.56 pounds



            KE2328

            This kit includes:

            CE216A1Z80

            • 5.5” 2 disc clutch with .105” thick sintered bronze metallic discs
            • 1-1/8” x 10 tooth spline (coarse spline)
            • Clutch torque capacity: 660 lb.ft. peak torque capacity
            • Designed for cars with 330 – 525 lb.ft. of engine torque
            • Weight = 5.45 pounds

            FE301

            • Lightweight 5.5” button flywheel
            • Fits Ford SB V-8
            • Weight = 2.35 pounds



              KE2129

              This kit includes:

              CE216A1Z90

              • 5.5” 2 disc clutch with .105” thick sintered bronze metallic discs
              • 1-5/32” x 26 tooth spline (fine spline)
              • Clutch torque capacity: 660 lb.ft. peak torque capacity
              • Designed for cars with 330 – 525 lb.ft. of engine torque
              • Weight = 5.45 pounds

              FE101

              • Lightweight 5.5” button flywheel
              • Fits Chevy early model crank (1985 & earlier with 2 piece rear main seal)
              • Weight = 2.20 pounds



                KE2829

                This kit includes:

                CE216A1Z90

                • 5.5” 2 disc clutch with .105” thick sintered bronze metallic discs
                • 1-5/32” x 26 tooth spline (fine spline)
                • Clutch torque capacity: 660 lb.ft. peak torque capacity
                • Designed for cars with 330 – 525 lb.ft. of engine torque
                • Weight = 5.45 pounds

                FE103

                • Lightweight 5.5” button flywheel
                • Fits Chevy late model crank (1986-1997 with 1 piece rear main seal)
                • Weight = 2.16 pounds



                  KE2929

                  This kit includes:

                  CE216A1Z90

                  • 5.5” 2 disc clutch with .105” thick sintered bronze metallic discs
                  • 1-5/32” x 26 tooth spline (fine spline)
                  • Clutch torque capacity: 660 lb.ft. peak torque capacity
                  • Designed for cars with 330 – 525 lb.ft. of engine torque
                  • Weight = 5.45 pounds

                  FE1031

                  • Lightweight 5.5” button flywheel
                  • Fits Chevy late model Crate Motor crank (1986-1997 with 1 piece rear main seal)
                  • Externally balanced
                  • Weight = 2.75 pounds



                    KE2029

                    This kit includes:

                    CE216A1Z90

                    • 5.5” 2 disc clutch with .105” thick sintered bronze metallic discs
                    • 1-5/32” x 26 tooth spline (fine spline)
                    • Clutch torque capacity: 660 lb.ft. peak torque capacity
                    • Designed for cars with 330 – 525 lb.ft. of engine torque
                    • Weight = 5.45 pounds

                    FE105

                    • Lightweight 5.5” button flywheel
                    • Fits Chevy LS V-8
                    • Weight = 2.56 pounds



                      KE2329

                      This kit includes:

                      CE216A1Z90

                      • 5.5” 2 disc clutch with .105” thick sintered bronze metallic discs
                      • 1-5/32” x 26 tooth spline (fine spline)
                      • Clutch torque capacity: 660 lb.ft. peak torque capacity
                      • Designed for cars with 330 – 525 lb.ft. of engine torque
                      • Weight = 5.45 pounds

                      FE301

                      • Lightweight 5.5” button flywheel
                      • Fits Ford SB V-8
                      • Weight = 2.35 pounds

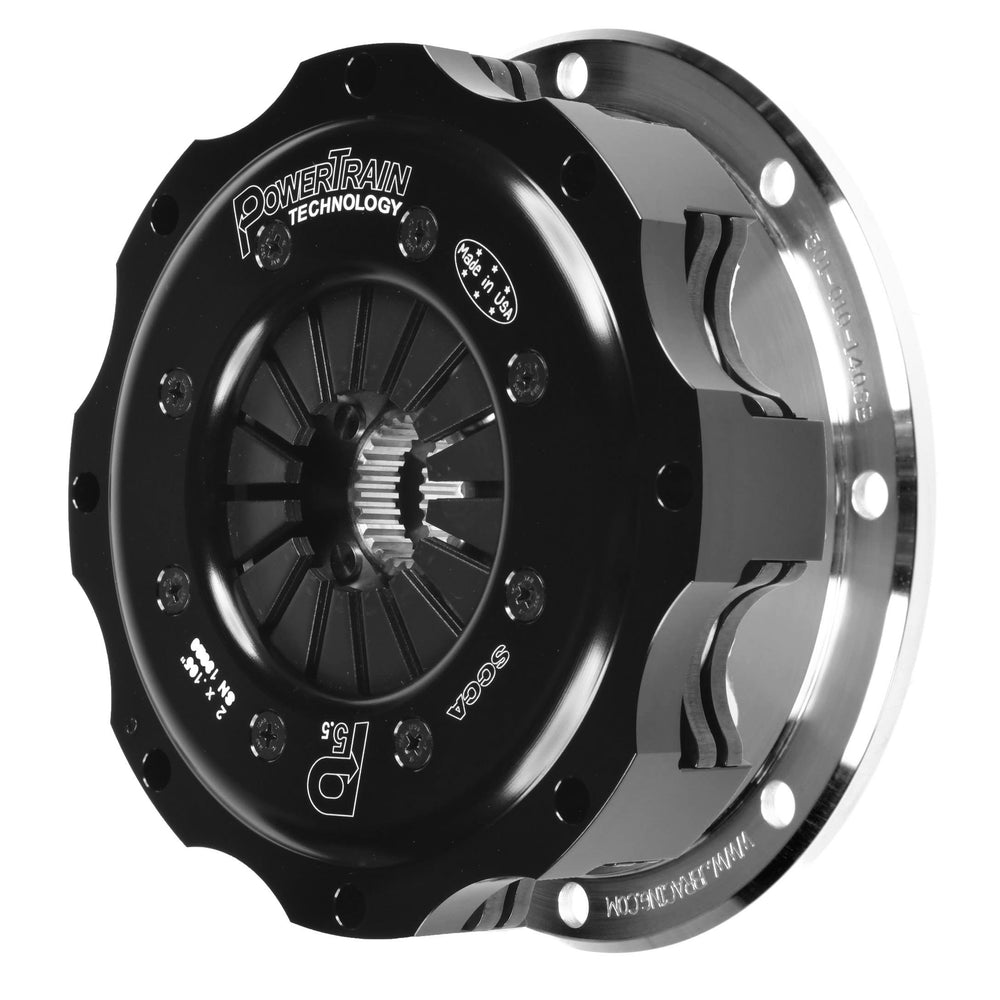

                        KE2726

                        This kit includes:

                        CE216A1C63E

                        • 5.5” 2 disc clutch with .105” thick sintered bronze metallic discs
                        • 1” x 23 tooth spline
                        • Cover marked SCCA
                        • Clutch torque capacity: 550 lb.ft. peak torque capacity
                        • Designed for cars with 250 – 400 lb.ft. of engine torque
                        • Weight = 5.45 pounds

                        FE501 (501-010-140SB)

                        • Lightweight 5.5” button flywheel to fit Mazda 4 cylinder, Formula SCCA Enterprises
                        • Weight = 2.82 pounds



                          KE3128

                          This kit includes:

                          CE316A1Z80

                          • 5.5” 3 disc clutch with .105” thick sintered bronze metallic discs
                          • 1-1/8” x 10 tooth spline (coarse spline)
                          • Clutch torque capacity: 990 lb.ft. peak torque capacity
                          • Designed for cars with 495 – 790 lb.ft. of engine torque
                          • Weight = 6.91 pounds

                          FE101

                          • Lightweight 5.5” button flywheel
                          • Fits Chevy early model crank (1985 & earlier with 2 piece rear main seal)
                          • Weight = 2.20 pounds



                            KE3828

                            This kit includes:

                            CE316A1Z80

                            • 5.5” 3 disc clutch with .105” thick sintered bronze metallic discs
                            • 1-1/8” x 10 tooth spline (coarse spline)
                            • Clutch torque capacity: 990 lb.ft. peak torque capacity
                            • Designed for cars with 495 – 790 lb.ft. of engine torque
                            • Weight = 6.91 pounds

                            FE103

                            • Lightweight 5.5” button flywheel
                            • Fits Chevy late model crank (1986-1997 with 1 piece rear main seal)
                            • Weight = 2.16 pounds



                              KE3928

                              This kit includes:

                              CE316A1Z80

                              • 5.5” 3 disc clutch with .105” thick sintered bronze metallic discs
                              • 1-1/8” x 10 tooth spline (coarse spline)
                              • Clutch torque capacity: 990 lb.ft. peak torque capacity
                              • Designed for cars with 495 – 790 lb.ft. of engine torque
                              • Weight = 6.91 pounds

                              FE1031

                              • Lightweight 5.5” button flywheel
                              • Fits Chevy late model Crate Motor crank (1986-1997 with 1 piece rear main seal)
                              • Externally balanced
                              • Weight = 2.75 pounds



                                KE3028

                                This kit includes:

                                CE316A1Z80

                                • 5.5” 3 disc clutch with .105” thick sintered bronze metallic discs
                                • 1-1/8” x 10 tooth spline (coarse spline)
                                • Clutch torque capacity: 990 lb.ft. peak torque capacity
                                • Designed for cars with 495 – 790 lb.ft. of engine torque
                                • Weight = 6.91 pounds

                                FE105

                                • Lightweight 5.5” button flywheel
                                • Fits Chevy LS V-8
                                • Weight = 2.56 pounds



                                  KE3328

                                  This kit includes:

                                  CE316A1Z80

                                  • 5.5” 3 disc clutch with .105” thick sintered bronze metallic discs
                                  • 1-1/8” x 10 tooth spline (coarse spline)
                                  • Clutch torque capacity: 990 lb.ft. peak torque capacity
                                  • Designed for cars with 495 – 790 lb.ft. of engine torque
                                  • Weight = 6.91 pounds

                                  FE301

                                  • Lightweight 5.5” button flywheel
                                  • Fits Ford SB V-8
                                  • Weight = 2.35 pounds



                                    KE3129

                                    This kit includes:

                                    CE316A1Z90

                                    • 5.5” 3 disc clutch with .105” thick sintered bronze metallic discs
                                    • 1-5/32” x 26 tooth spline (fine spline)
                                    • Clutch torque capacity: 990 lb.ft. peak torque capacity
                                    • Designed for cars with 495 – 790 lb.ft. of engine torque
                                    • Weight = 6.91 pounds

                                    FE101

                                    • Lightweight 5.5” button flywheel
                                    • Fits Chevy early model crank (1985 & earlier with 2 piece rear main seal)
                                    • Weight = 2.20 pounds



                                      KE3829

                                      This kit includes:

                                      CE316A1Z90

                                      • 5.5” 3 disc clutch with .105” thick sintered bronze metallic discs
                                      • 1-5/32” x 26 tooth spline (fine spline)
                                      • Clutch torque capacity: 990 lb.ft. peak torque capacity
                                      • Designed for cars with 495 – 790 lb.ft. of engine torque
                                      • Weight = 6.91 pounds

                                      FE103

                                      • Lightweight 5.5” button flywheel
                                      • Fits Chevy late model crank (1986-1997 with 1 piece rear main seal)
                                      • Weight = 2.16 pounds



                                        KE3929

                                        This kit includes:

                                        CE316A1Z90

                                        • 5.5” 3 disc clutch with .105” thick sintered bronze metallic discs
                                        • 1-5/32” x 26 tooth spline (fine spline)
                                        • Clutch torque capacity: 990 lb.ft. peak torque capacity
                                        • Designed for cars with 495 – 790 lb.ft. of engine torque
                                        • Weight = 6.91 pounds

                                        FE1031

                                        • Lightweight 5.5” button flywheel
                                        • Fits Chevy late model Crate Motor crank (1986-1997 with 1 piece rear main seal)
                                        • Externally balanced
                                        • Weight = 2.75 pounds



                                          KE3029

                                          This kit includes:

                                          CE316A1Z90

                                          • 5.5” 3 disc clutch with .105” thick sintered bronze metallic discs
                                          • 1-5/32” x 26 tooth spline (fine spline)
                                          • Clutch torque capacity: 990 lb.ft. peak torque capacity
                                          • Designed for cars with 495 – 790 lb.ft. of engine torque
                                          • Weight = 6.91 pounds

                                          FE105

                                          • Lightweight 5.5” button flywheel
                                          • Fits Chevy LS V-8
                                          • Weight = 2.56 pounds



                                            KE3329

                                            This kit includes:

                                            CE316A1Z90

                                            • 5.5” 3 disc clutch with .105” thick sintered bronze metallic discs
                                            • 1-5/32” x 26 tooth spline (fine spline)
                                            • Clutch torque capacity: 990 lb.ft. peak torque capacity
                                            • Designed for cars with 495 – 790 lb.ft. of engine torque
                                            • Weight = 6.91 pounds

                                            FE301

                                            • Lightweight 5.5” button flywheel
                                            • Fits Ford SB V-8
                                            • Weight = 2.35 pounds
