4.5" Racing Clutch - 3 disc Bellhousing Kit

  • 4.5" Racing Clutch - 3 disc  Bellhousing Kit
  • 4.5" Racing Clutch - 3 disc  Bellhousing Kit
  • 4.5" Racing Clutch - 3 disc  Bellhousing Kit

4.5" Racing Clutch - 3 disc Bellhousing Kit

  • Don’t see your configuration?

    Call us at 714-630-2764 or email: info@mcleodracing.com

    PTT’s reverse starter bellhousing kit uses a lightweight, button-style flywheel and a starter ring gear mounted on top of the clutch. There are a number of advantages to using a reverse mount bellhousing:

    1. The starter is mounted away from the heat of the headers
    2. The small diameter flywheel and clutch allow the drivetrain to be mounted lower in the chassis
    3. The smaller overall physical size of the bellhousing fits more easily into a stock car
    4. Relocating the starter lowers the vehicle’s polar moment of inertia, resulting in better handling and faster turn-in response

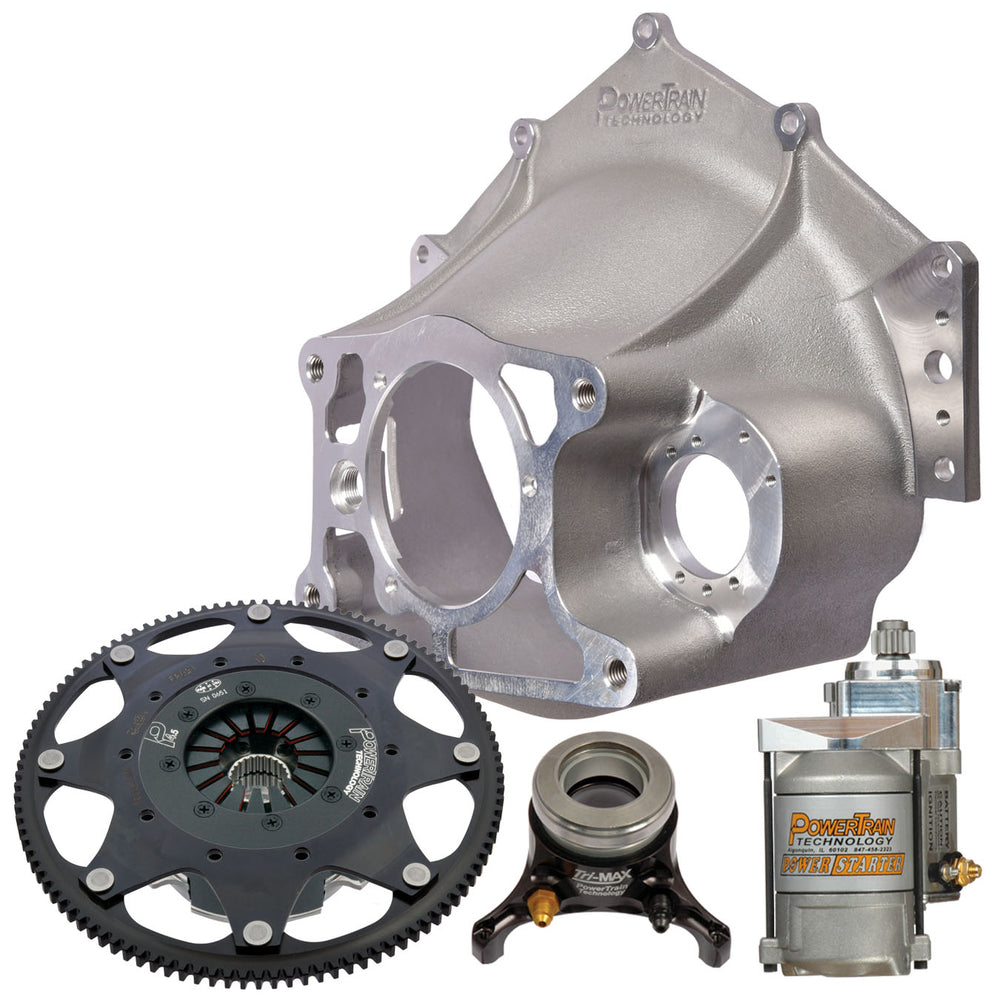

    Kit includes: 4.5” Clutch, Light Weight Button Flywheel, Reverse Starter Mount Bellhousing (aluminum), Reverse Mount Starter, Hydraulic Release Bearing with External Bleeder Kit (Hydro-MAX or Tri-MAX), Reverse Mount Ring Gear, Clutch Bolts & Flywheel Bolts.  NOTE:  Does not include a Motor Plate.

    When will my order ship?

    Click here for  4.5" Racing Clutch

  • BC3118

    This kit includes:

    • 4.5” 3 disc clutch with .105” thick sintered bronze metallic discs
      • 1-1/8” x 10 tooth spline (coarse spline)
      • Clutch torque capacity: 900 lb.ft. peak torque capacity
      • Designed for cars with 450 – 700 lb.ft. of engine torque
    • Lightweight button flywheel to fit Chevy early model crank (1985 & earlier with 2 piece rear main seal)
    • Bellhousing, Chevy SB V-8, for use with reverse mount starter
    • Starter, reverse mount (reverse rotation)
    • Hydro-MAX drop-in floating mount hydraulic release bearing, 2.28-3.03" OAL, with external bleeder line kit
    • Reverse mount ring gear for 4.5” 3 disc clutch
    • Clutch bolts
    • ARP flywheel bolts
